BOX TILTER: Container Tilter
for loading and unloading bulk materials
Maximize payload, eliminate operational risks, and reduce operating times

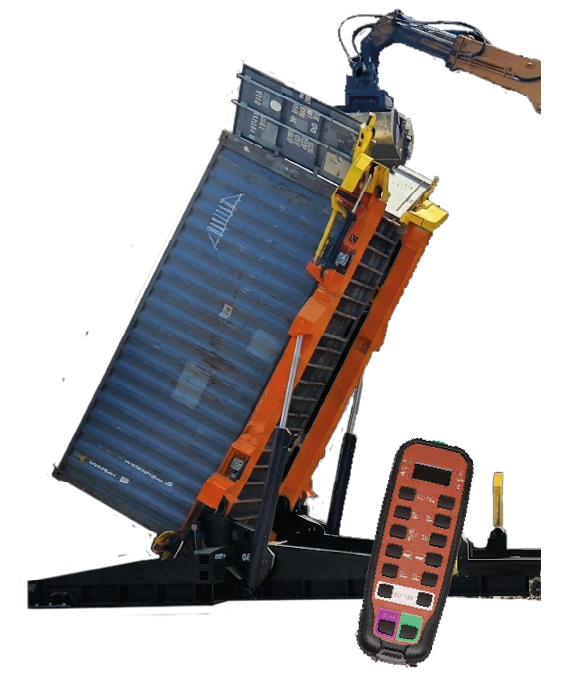

The Box Tilter is a professional system for tilting containers designed for loading and unloading bulk goods. Thanks to its hydraulic lifting with a maximum capacity of 30 Tons, the container tilter enables fast, safe, and efficient handling of bulk materials.
Utilized across industrial logistics, recycling, agri-food, chemical, and ferrous materials sectors, the system allows loading and unloading of 20', 30', and 40' containers, drastically reducing operating times and handling costs.
The Box Tilter system increases net loading volume, reduces the required number of operators, and guarantees maximum safety during all tilting and emptying phases of the container
THE BOX TILTER BRINGS SPEED, SAFETY AND EFFICIENCY TO YOUR OPERATION.
UNIQUE IN EUROPE
ALSO AVAILABLE FOR RENTAL
%
savings on transport costs
single operator in total safety
%
loading volume
%
savings on handling times
Container Tilter For Loading / Unloading
How it works
The Box Tilter system optimises every stage of the process, cutting operating times and guaranteeing maximum safety for operators and equipment.
For Loading
.
Container Positioning
The empty container is positioned onto the tilter platform using a semi-trailer, forklift, or reach stacker.
Hydraulic Locking
The semi-automatic system locks the container at the 4 corner castings via hydraulic clamps. A single operator using a remote radio control manages the entire operation in complete safety.
Tilting up to 90°
The upright rotates the container from horizontal up to 70° (optional 90°). The doors open automatically, allowing bulk material to flow inside by gravity. +30% volume compared to traditional methods.
Repositioning
Once loading is complete, the tilter returns the container to the horizontal position. The doors automatically reclose, and the container is unlocked.
For Unloading
.
Cargo Acceptance
The full container is positioned onto the tilter via semi-trailer or reach stacker. Optional integrated weighing systems verify weight and cargo type.
Locking and Door Opening
The hydraulic system locks the container at the 4 base corner castings. The automated arm opens the doors in complete safety, requiring no manual operator intervention.
Gravity Unloading
With progressive tilting up to 70°, the bulk material flows directly downward. Fast, clean, and zero-contamination process.
Return and Handling
The empty container is returned to the horizontal position, unlocked, and dispatched to subsequent operations. Full cycle completed in under 10 minutes, ensuring maximum productivity.
The Box Tilter system is engineered with a heavy-duty self-supporting frame that requires no complex civil works or deep foundations for installation.
We guarantee on-site installation within 24 hours.
The integration of 4-point hydraulic base-corner locking systems and the automated door management arm ensures zero operator contact with the hazard zone.
Container Loading / Unloading Solutions
Overcome the limits of conventional loading methods
Advantages of Using the Container Tilter
Operational Advantages
Maximum Operational Efficiency
Reduction of loading/unloading cycle times by up to 80%. A single operator, reduced operating costs, higher productivity in your facility.
CE/UL Certified Safety
Structures verified with FEA/FEM structural analysis. Semi-automatic hydraulic 4-corner locking system. Automated door opening/closing with zero risks for the operator.
INCREASE YOUR LOADING VOLUME
Vertical loading fills the container completely, so you can load far more material than with the traditional method.
CUT YOUR TRANSPORT COSTS
Maximising the fill rate of every container reduces the number of trips required.
24-Hour Installation
Relocatable machinery within the production area. On-site installation within 24 hours, technical support guaranteed within 24–36 hours of request.
Certifications:
ISO 9001:2008
UNI ISO 38834-2:2006
EN 1090-2:2009 + A1:2011
EN 15085-2
20ft, 30ft, and 40ft Container Tilting Solutions
Tilters for Loading
20ft Container Tilter for Loading
The container tilter for loading 20-foot containers needs just one operator and lets you increase loading volumes while cutting transport costs.
The only solution in Europe also available for operational rental.
30ft Container Tilter for Loading
The container tilter for loading 30-foot containers. It tilts up to 70° (90° option) to fill with bulk material by gravity. Increase loading volumes, reduce transport costs.
Container Tilter per carico container 40'
The container tilter for loading 40-foot containers. It tilts up to 70° (90° option) to fill with bulk material by gravity. Increase loading volumes, reduce transport costs.
20ft, 30ft, and 40ft Container Unloading Solutions
Tilters for Unloading
20ft Container Tilter for Unloading
The container tilter for unloading 20' containers empties the container completely in half the time. It tilts up to 58° (up to 90° optional), discharging bulk material in full safety.
The only solution in Europe also available for rental.
30ft Box-Tilter for Unloading
The container tilter for unloading 30' containers saves time on every unloading operation. It tilts up to 50° (70° option), discharging bulk material safely with a single operator.
40ft Box-Tilter for Unloading
The 40ft container unloading tilter empties the container in less than 10 minutes. Tilts up to 50° (optional 70°), discharging large volumes of bulk material quickly and efficiently.
Endless Applications
Sectors of Use
The Box Tilter system enables efficient loading of any type of hard-to-handle bulk cargo.
Ferrous Materials
Chemical and Pharmaceutical Materials
Waste and Recyclable Materials
Grit & Aggregates
Resins and Cold Asphalt
Food & Beverage
Fertilizers
Fuels and Renewable Energy
Ferrous Materials & Scrap: Structural resistance verified via FEA/FEM analysis to withstand high-density impacts without damaging internal container walls.
Plastics, Resins & Polymers: Fast, clean loading of granules and powders free from environmental contamination.
Recycling & Waste Management: Accelerated throughput for disposal and sorting flows of paper, glass, and RDF (Refuse-Derived Fuel).
Agri-Food & Animal Feed: Full compatibility with industry hygiene and sanitary standards.
Chemicals & Mining: Controlled handling of minerals, fertilizers, and aggregates.
The only supplier in Europe offering operational rental options
Scale your logistics capacity with tailored solutions
The only manufacturer in Europe providing an Operational Rental service for container tilters. An ideal solution for managing seasonal peak loads, short-term contracts, or evaluating machine performance directly on-site before purchase.
For information and custom quotes
Contact our engineering team
